Odorized Compressed Natural Gas (CNG) / (LNG)

UN1971 Natural Gas Compressed / UN1972 Natural Gas Refrigerated Liquid (Also see Methane Cryogenic)

Natural gas is a flammable, colorless, hydrocarbon gas mixture consisting primarily of Methane. CNG is shipped in high pressure containers and may be odorized to make it detectable. LNG is stored and transported as a cryogenic refrigerated liquid at -259F.

Natural Gas Products Complete Supply

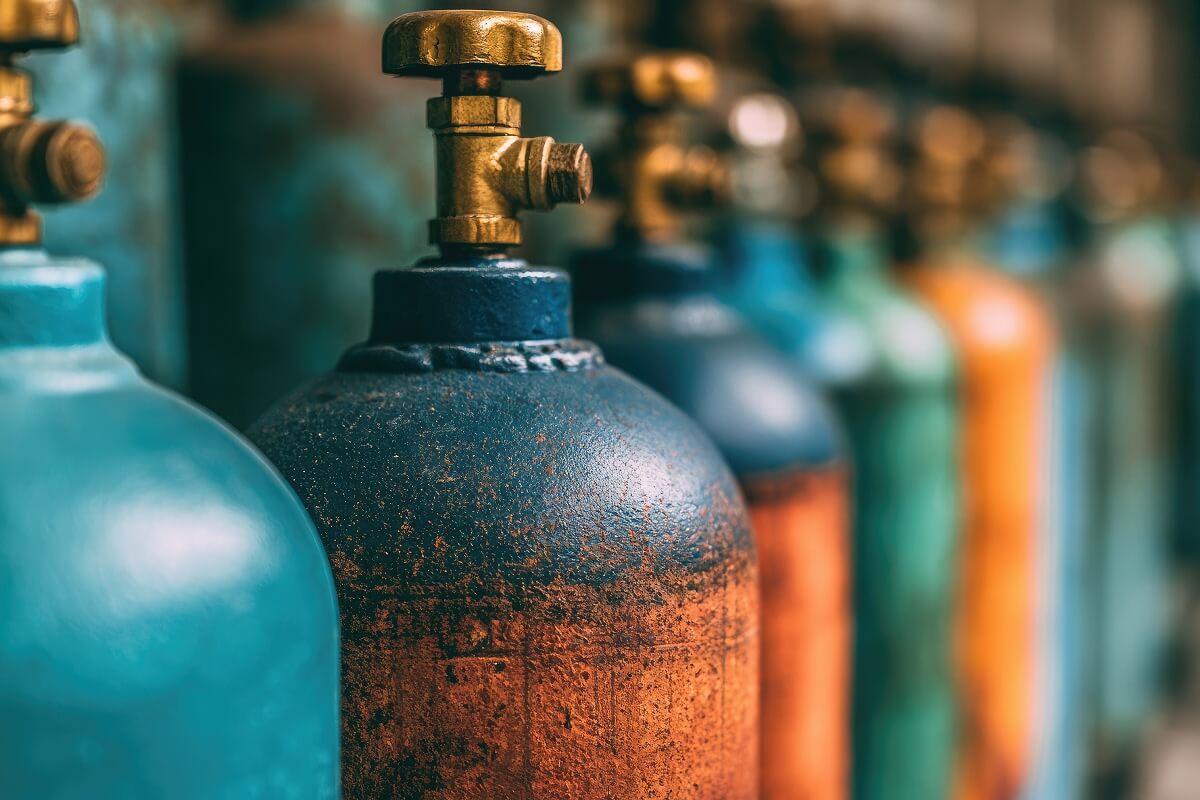

Gas Innovations continues to develop the natural gas market for its distributor network. In the past few months Gas Innovations has added resources to complete its offering of natural gas supply, filling odorized compressed natural gas (CNG) into cylinders and tube trailers. Until October 2013 Gas Innovations offered liquefied natural gas (LNG) and CNG in non-odorized form. With the addition of the odorized CNG, Gas Innovations now has the complete supply of natural gas products to supports it distributors.

LNG Services

Gas Innovations provides the following services:

• Assurance of supply

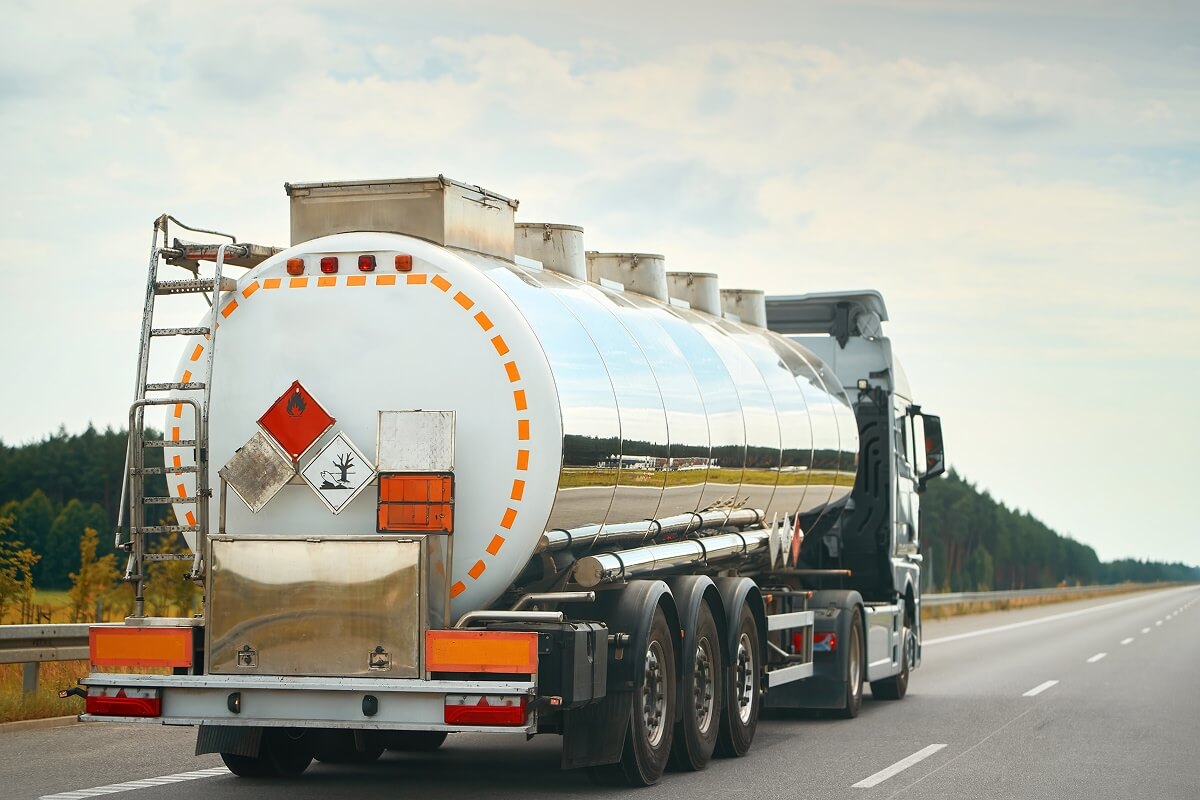

• Transportation and delivery

• On-site storage for customized requirements

• Customized vaporization

• Customized delivery pressures

• Customized flow requirements

• Back-up supply of compressed natural gas (LNG)

•Staffing of experienced personnel

Product & Packaging Information

PurityCylinder SizeContentsCylinder Pressure 70FStandard Valve Outlet (CGA)
CNG
94.0%-99.9%
300
200
360 scf
300 scf
2400
2265
350
350
LNG
94.0%-99.9%
20 ft ISO
40 ft ISO
15,898 lb
34,785 lb
N/A
N/A
LNG 300
LNG 300

Product Data
Molecular Weight16.04
Specific Volume CNG24.1 cf / lb @ 70F-83 cf / gal
Specific Volume LNG3.552 lb / gal @ -259F
Flammability in Air5.0-15% in Air
U.S. D.O.T. Name CNGNatural Gas, Compressed
U.S. D.O.T. Name CNGNatural Gas, Refrigerated Liquid
U.S. D.O.T. Hazard Class Label CNG2.1 Flammable Gas
U.S. D.O.T. Hazard Class Label LNG2.1 Flammable Liquid
Refrigerant NumberR-50
